YMWA

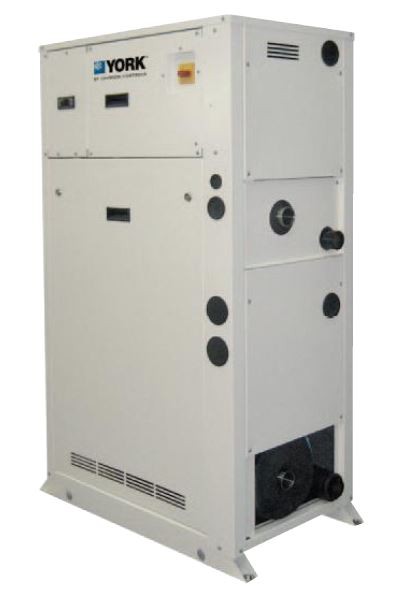

A fully enclosed single refrigerant circuit unit designed for internal plant room locations has minimum size for maximum cooling capacity. The unit construction is galvanised steel coated with baked-on powder paint RAL 9001 for durability. Design is based on 2 casing frames, providing a high level of standardization.

Integrated Pump Kits:
A complete range of pump kit combinations can be ordered factory fitted.

Quiet operation:
The YMWA range offers low sound characteristics as standard with the hermetic scroll compressor(s), evaporator (and if fitted Condenser) plate heat exchanger(s) together with the refrigerant circuit components are all housed within an acoustically lined cabinet. Optional accessory, compressor(s) may be fitted with acoustic jacket(s) to offer additional sound reduction.

User-friendly microprocessor controller :
All monitoring and control parameters are easily accessed via a soft touch key control panel and display.

Easy to install and maintain:
Designed to minimise site installation costs, both cooler and condenser have externally accessible female gas threaded, liquid connections. The control panel requires a single power supply. Each chiller is shipped fully assembled and charged with refrigerant. With the hermetic scroll compressor requiring no maintenance and component layout designed with ease of maintenance access.
14 available YMWA sizes in three versions:
1) YMWA-CE : Cooling only
2) YMWA-HE : Heat pump
3) YMRA : Remote condenser
