YCSE

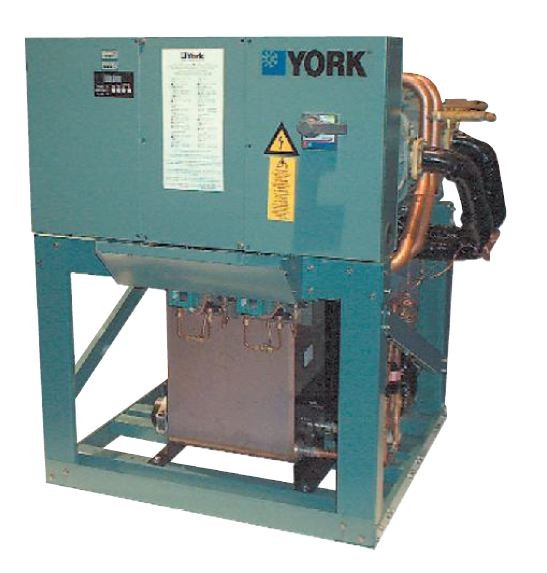

YORK® YCSE R407C chiller is designed for water or water-glycol cooling. It is designed for indoor installation in a plant room. The unit is completely factory assembled with all interconnecting refrigerant piping and wiring ready for field installation. YCSE unit is pressure tested, evacuated, and fully factory charged with refrigerant R407C and oil in each of the independent refrigerant circuits. After assembly, an operational test is performed with water flowing through the evaporator and condenser to ensure that each refrigerant circuit operates correctly.

Features

Efficient screw compressors:
Highly efficient the YORK® YCSE offers the highest standard of reliability and economical operation utilising twin-screw rotor technology and fully modulating compressor slide valve unloading, together with low inrush current star delta starters. To further improve the operating efficiency the leaving liquid temperature can be remotely reset.

Quiet operation:
The compressor has been designed so that there is minimal external gas pulsations and integral oil separators resulting in very low sound and vibration levels.

Small footprint:
The compact design is ideally suited for reduced base area locations. Both single and twin circuit designs require a single liquid inlet and oulet connection. The unit frame is manufactured from heavy gauge galvanised steel coated with baked-on powder paint.
